HV Stator Test Bench

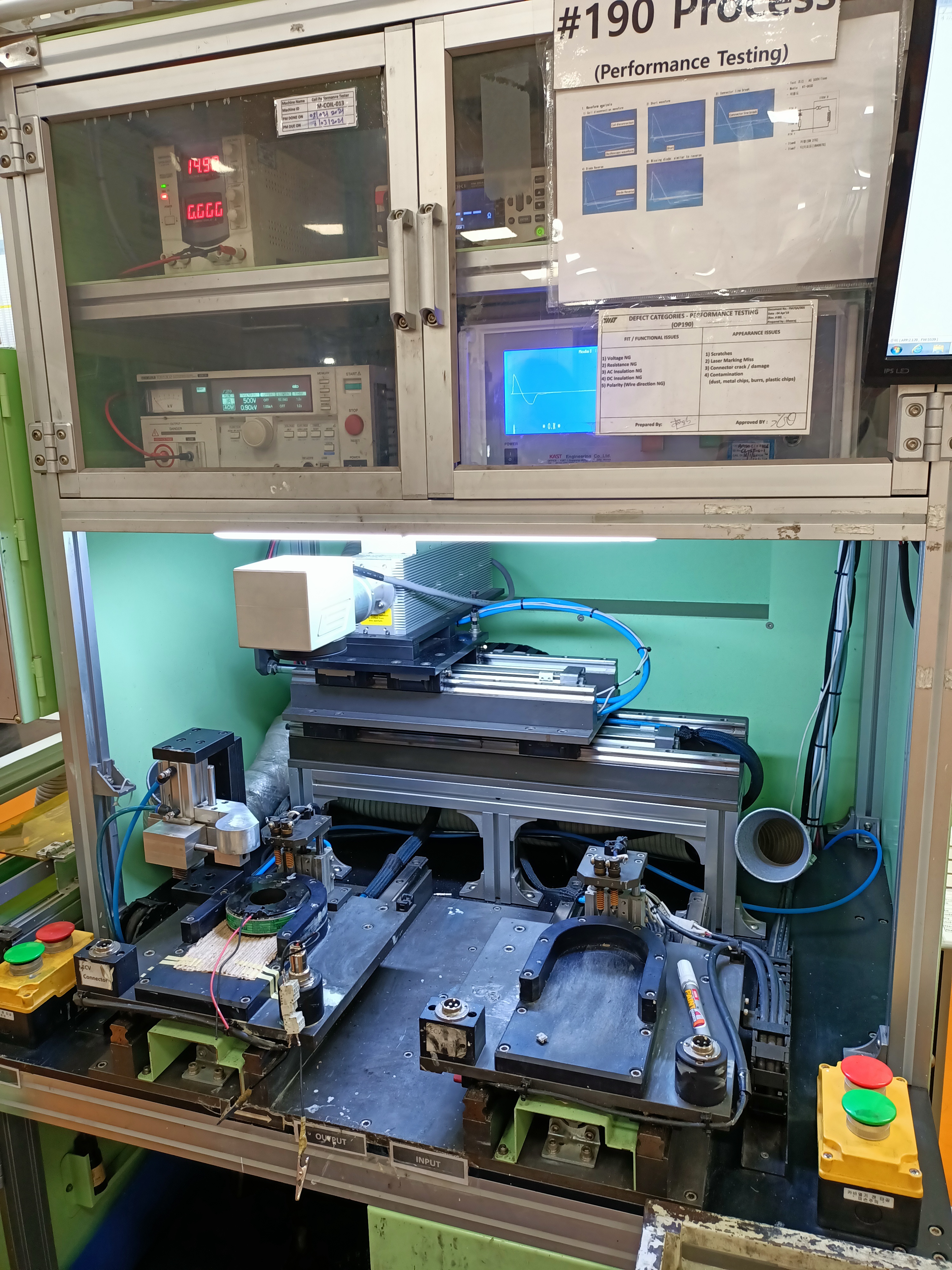

HV Stator Test Bench manufacturers & exporters from India, Test Bench is an on-line testing machine developed to test stator coils used to engage clutches in automobile AC compressors. Main Features of the machine are:

•  Fully PC based system, with NI Data acquisition cards & Lab VIEW software.
•  Conducts 3 standard tests to check the quality of coil.
•  Continuity & coil resistance test, checks the current drawn by coil with set limits.
•  Insulation resistance test @ 600V AC - 1000V AC to check insulation quality of coil.

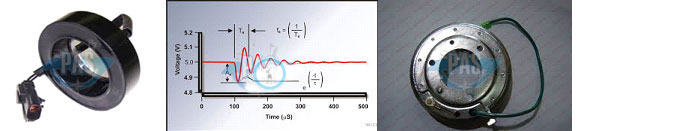

•  High voltage layer short test @ 1500 V DC to check for any internal layers short or
•  turns present in coil, by comparing acquired ringing waveform developed from coil under test with the master coil.
•   ⦁ “OK” & “NG” output after performing all tests and auto stamping on coil.
•   Data logging for every coil tested during each shift for analysis point of view.
