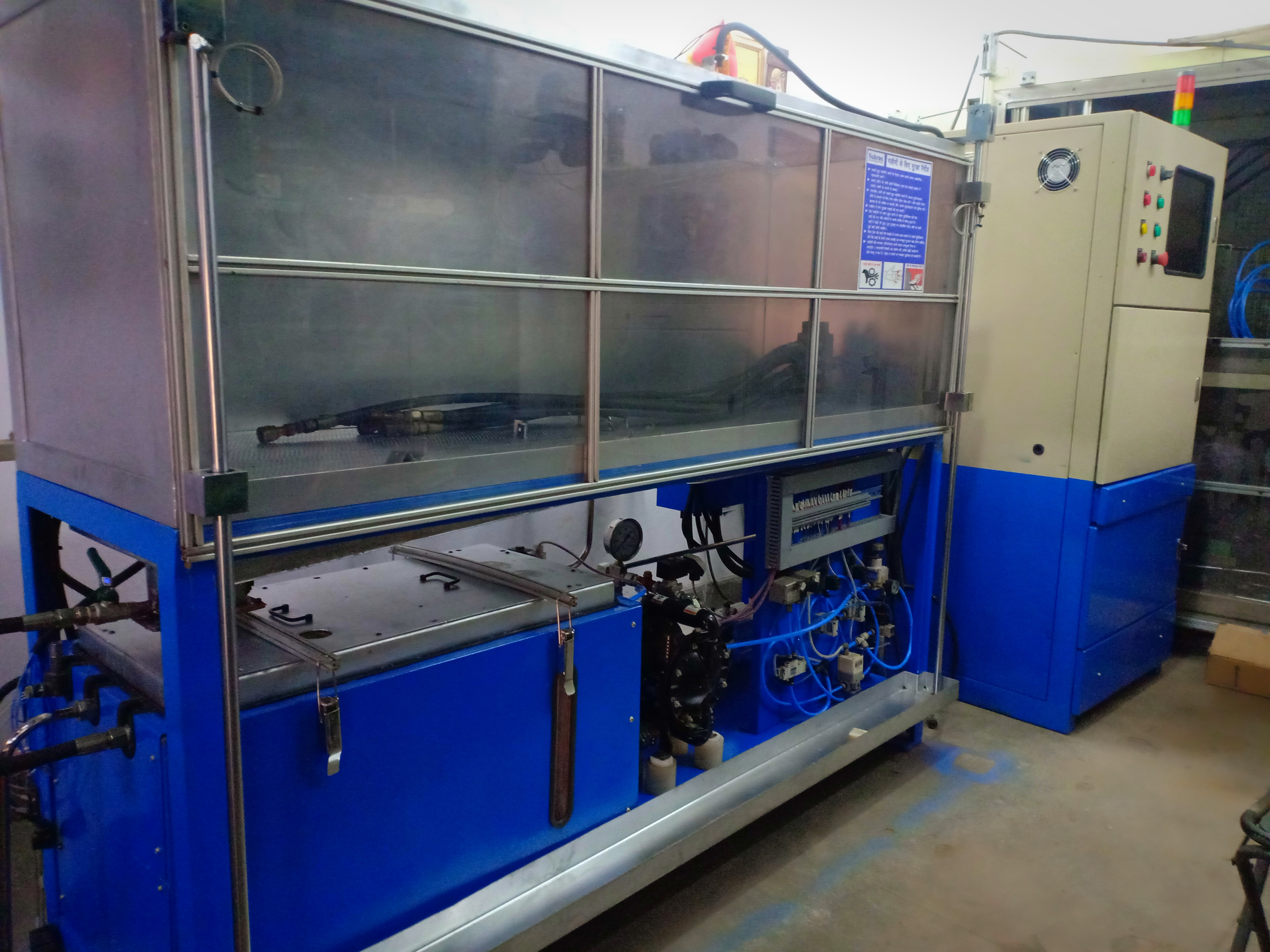

Burst & Pulsation Test Bench

Burst & Pulsation Test Bench manufacturers & exporters from India, Test Bench is designed for Pulsation & Burst testing of Heat Exchangers, Discharge & Suction Hoses, Condensers, Evaporator, Tube Liquids; Tank Receiver etc. used in auto AC conditioning system.
Main Features of the Test Bench are:

  •  PC based system with Lab VIEW software & NI data acquisition cards for measuring process parameters.
  •  Safety chamber with temperature control up to 100°C and oil temperature control to simulate real test conditions for components under test.
  •  Pressure pulsation testing up to four components at a time of max. 1500 ml capacity.
  •  Glycol power pack for generating test pressure up to 0 – 6 Kgf/cm2
  •  Maximum Burst test pressure ranging from:0 to 12 Kgf/cm2.for Heater Core and (0 – 6 Kgf/cm2) for heater core testing pressure control using air pressure 0 to 5 Kgf/cm2,
  •  pressure pulsation control using accumulators.
  •  Pressure from pulsation testing acquired, displayed and controlled under set time and pressure limits for different models.
  •  Components are put under test for settable number of cycles normally ranging up to 1, 00,000 & above.
  •  Data logging of Parameter for analysis
