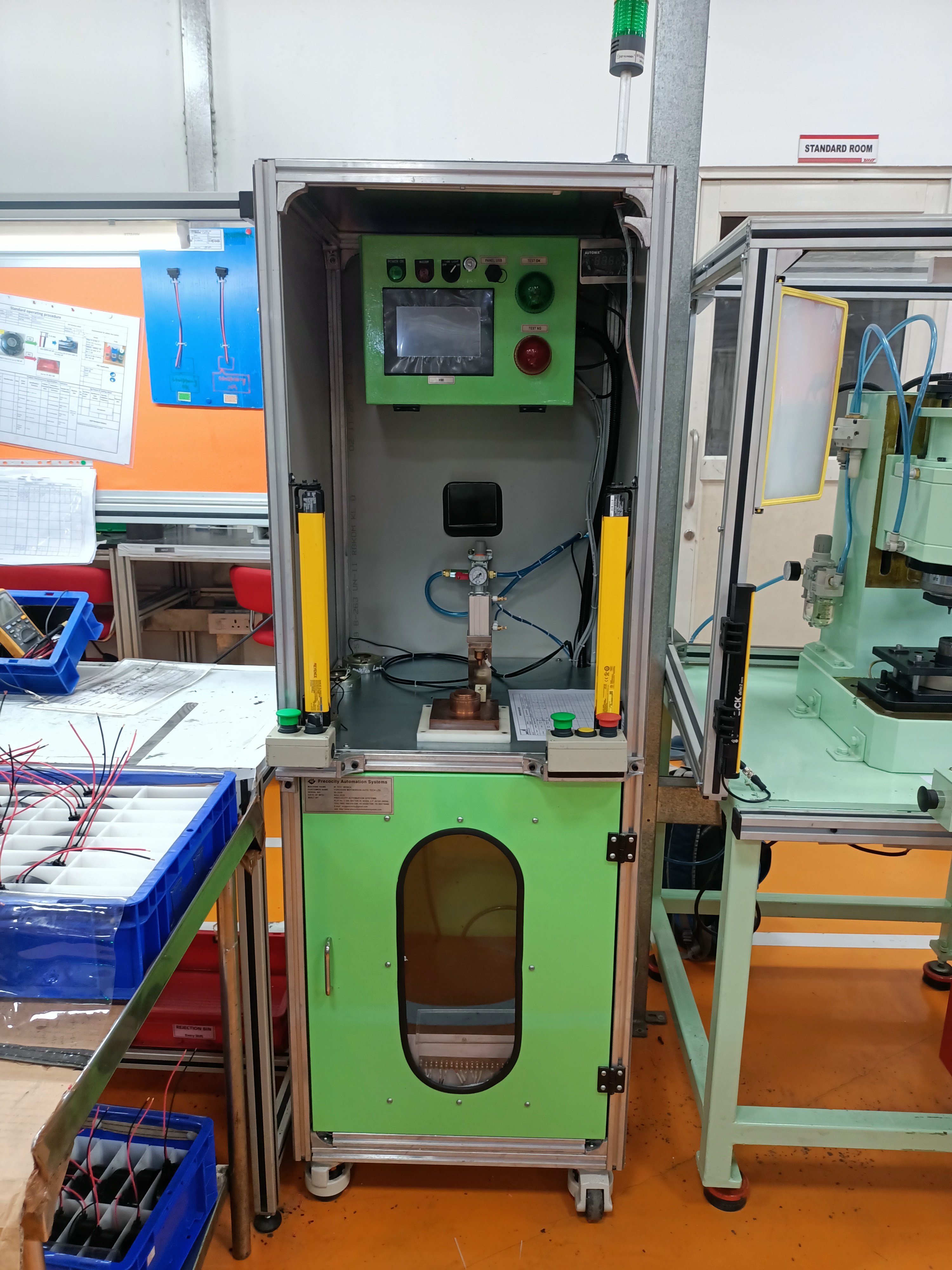

Insulation Resistance Test Bench

Insulation Resistance Test Bench manufacturers & exporters from India, Test Bench is an on-line testing machine developed to test stator coils used to engage clutches in automobile AC compressors.
Main Features of the machine are:

  •  Conducts 1 standard tests to check the quality of coil.
  •  Continuity & coil resistance test, checks the current drawn by coil with set limits.
  •  Insulation resistance test @ 600V AC - 2000V AC to check insulation quality of coil.
  •  Bar Code printing & stamping option available after completion of the test.
  •  PC Based system with Lab VIEW OPC Server software & FX Series PLC for monitoring and editing / setting of different model test parameters.
  •  “OK” and “NG” Output after completion of test.
  •  Data logging for every coil tested during each shift for analysis point of view.
