Pulsation Cyle Test Ring

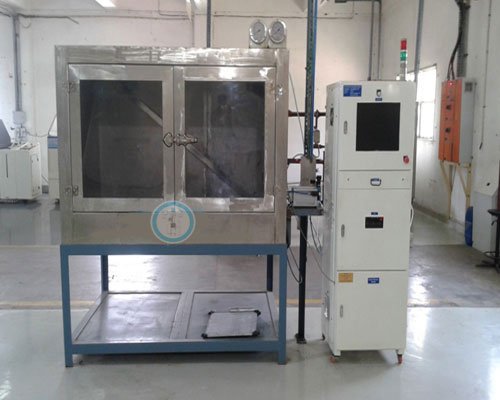

Pulsation Test Ring Machine manufacturers & exporters from India, Test Ring is designed for pressure pulsation testing of Heat Exchangers, Discharge & Suction Hoses, Condensers, Evaporator, Tube Liquids; Tank Receiver etc. used in auto AC conditioning system. Main Features of the Test Bench are:

  •  PC based system with Lab VIEW software & NI data acquisition cards for measuring process parameters.
  •   Safety chamber with temperature control up to 140°C and oil temperature control to simulate real test conditions for components under test.
  •  Pressure pulsation testing up to four components at a time of max. 1500 ml capacity.
  •  Glycol power pack for generating test pressure up to 0 – 2.5 Kgf/cm2, pressure pulsation control using accumulators.
  •  Pressure from pulsation testing acquired, displayed and controlled under set time and pressure limits for different models.
  •  Components are put under test for settable number of cycles normally ranging up to 1, 00,000 & above.
  •  Data logging of Parameter for analysis
