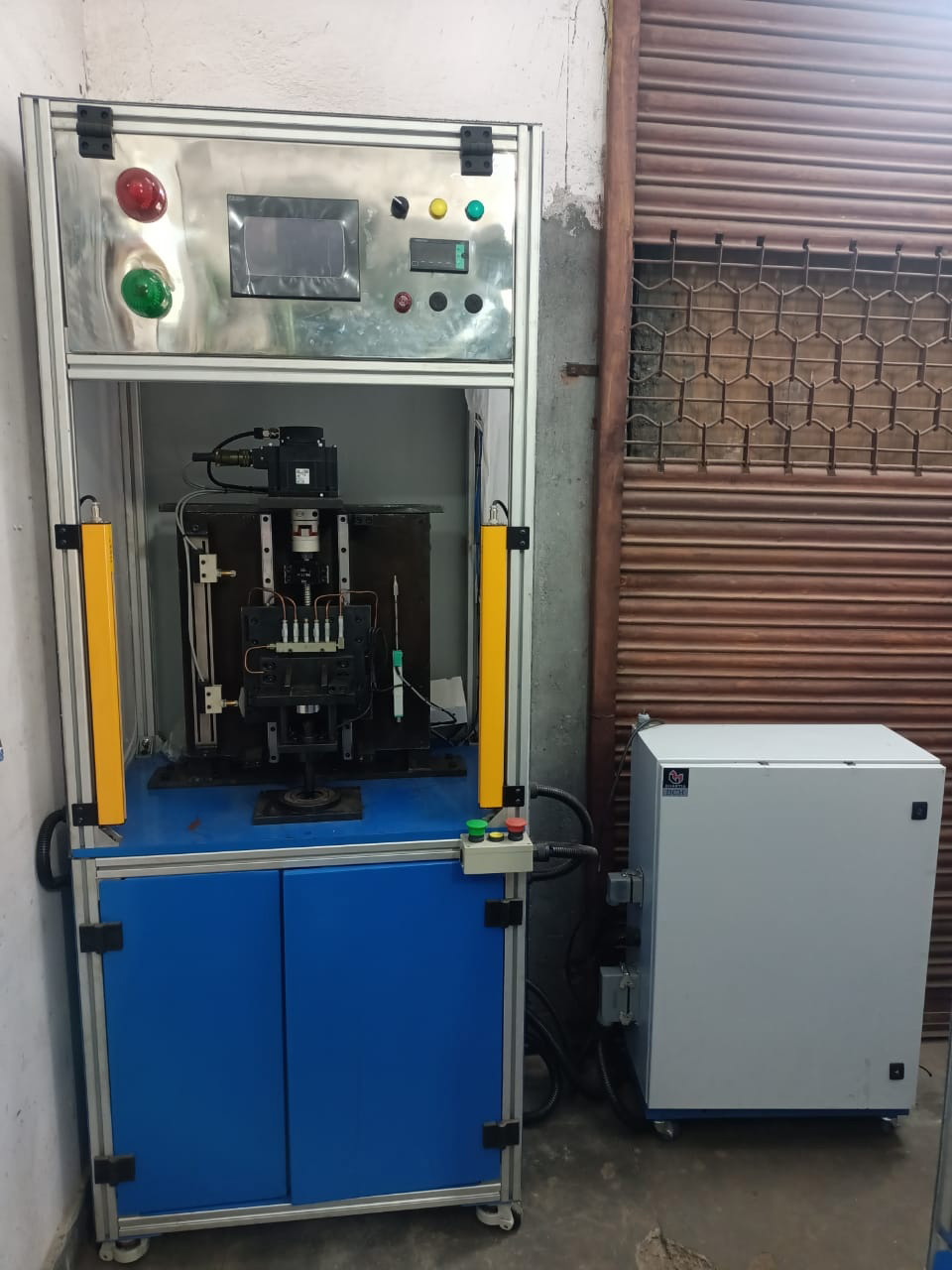

Reaction Force Machine

Reaction Force Machine manufacturing & exporters from India, Machine is designed and developed for online quality testing of Armature Plate. Main Features of the Test Bench are:

  •  FX5U PLC Based system with Mitsubishi Make HMI for monitoring and editing / setting of different model test parameters.
  •  Check Armature Part Plate Presence on Fixture and Select Model for testing
  •  Mitsubishi Make Servo Motor for Fast & Slow Movement, Speed Control through HMI
  •  Machine Measuring Reaction Force as well as Spring Constant as per Model
  •  LVDT & Load Cell Based System to Measure & Control Travel Movement
  •  Graph monitoring Load vs Displacement simulating real test conditions.
  •  Data logging being done for motor performance analysis.
